Andorean Hardware

Andorean Hardware is industrial-grade edge infrastructure for the Andorean Digital Twin — collecting, connecting, and computing in the field. Andorean Hub, Andorean Tag, Andorean Node, and Andorean U-Tag gather location, sensor, Vehicle ECU, and other operational data at the edge, then send it to the cloud platform.

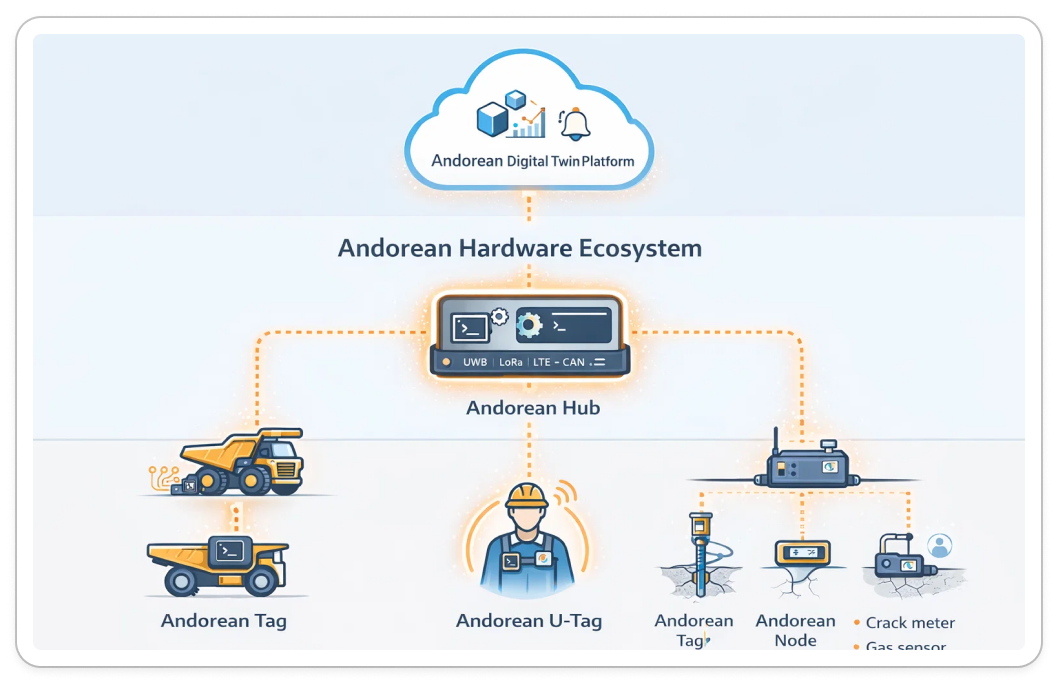

Andorean Tag, Andorean Personnel Tag (U-Tag), UWB anchors, and RTK receivers work with Andorean Hub as one intelligent field system. Radio links, sensors, and Vehicle ECU data are processed at the edge and sent over the internet to the cloud, then into the Digital Twin.

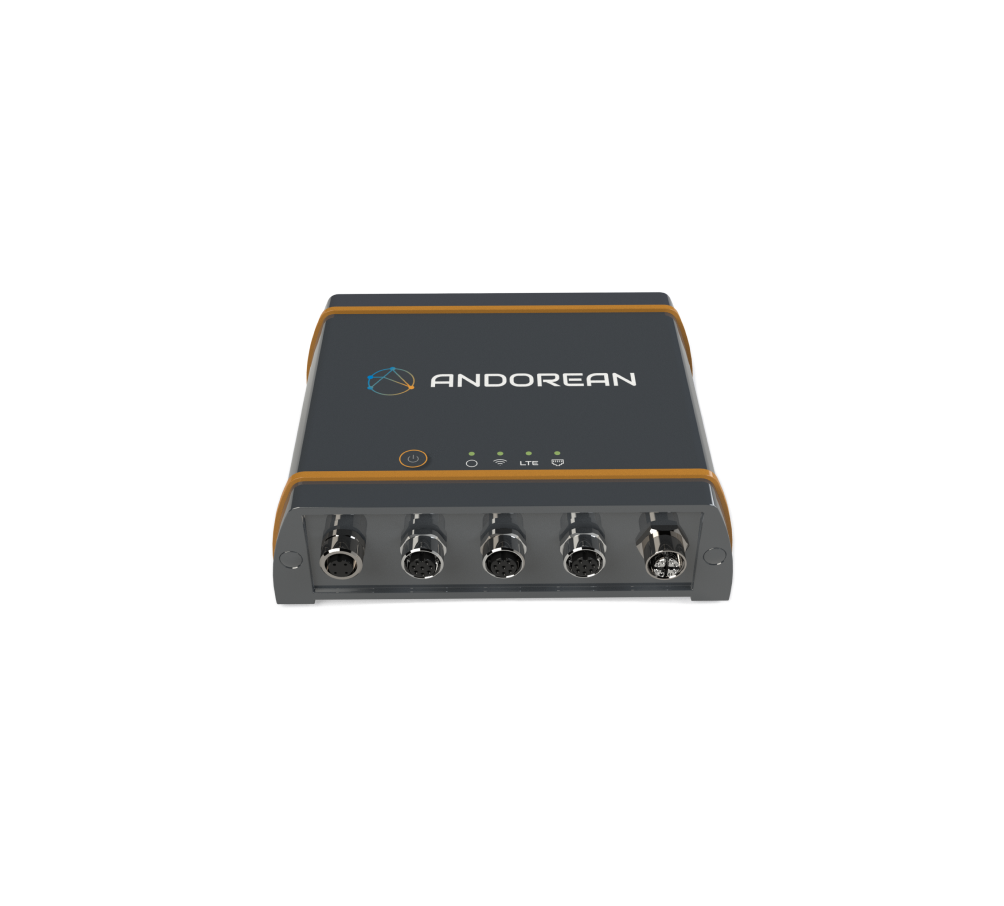

Andorean Hub

Edge computer that aggregates site data from Tags, Nodes, U-Tags, UWB anchors, and RTK receivers, then uplinks to the Digital Twin.

Technical specifications

• ProcessorNXP i.MX8 Mini, Quad Core
• Memory4GB LPDDR4
• Storage16GB eMMC, SD Card up to 128GB
• ConnectivityEthernet, Wi-Fi, Bluetooth, 4G LTE, LoRaWAN
• InterfacesUSB Host, CAN bus, RS485
• Operating Temperature Range−40 to +85 °C
• Power consumption5 W (Typical)
• Operating Voltage6–36 Vdc
• ProtectionIP67 water & dust proof
• Dimension157 × 120 × 40 mm

Use cases

• Mining
• Industrial IoT
• Automation
• Artificial Intelligence
• Robotic

Field to cloud

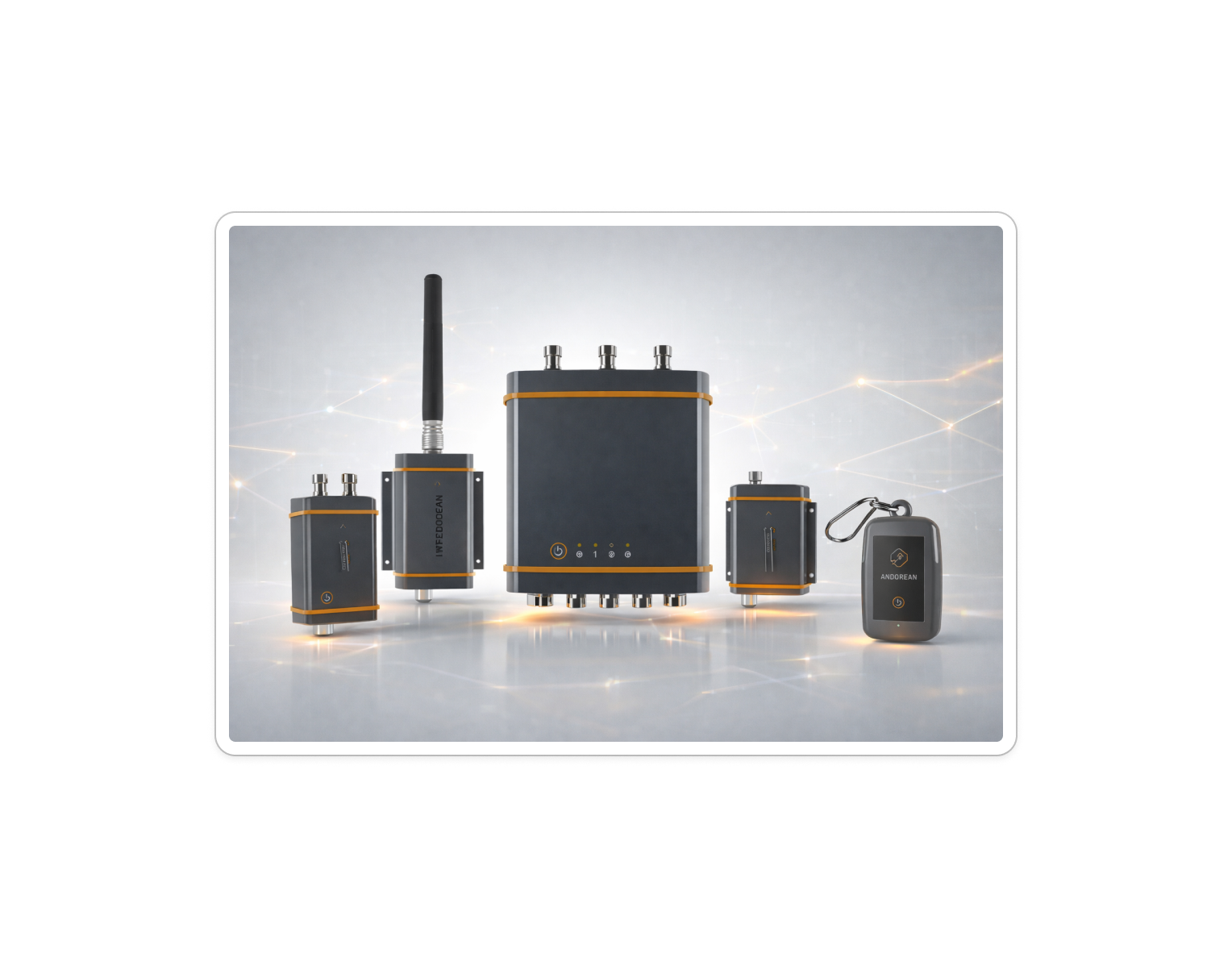

Four devices, one family. Hub aggregates the site — including Tags, Nodes, U-Tags, UWB anchors, and RTK receivers. Tag rides on machines. Node talks to analogue and Modbus instruments. U-Tag stays with people. Together they collect, connect, and compute so the Digital Twin is not a drawing — it is live.

01

Andorean Hub

Edge computer. Site uplink to the twin over Ethernet, Wi-Fi, Bluetooth, 4G LTE, or LoRaWAN.

02

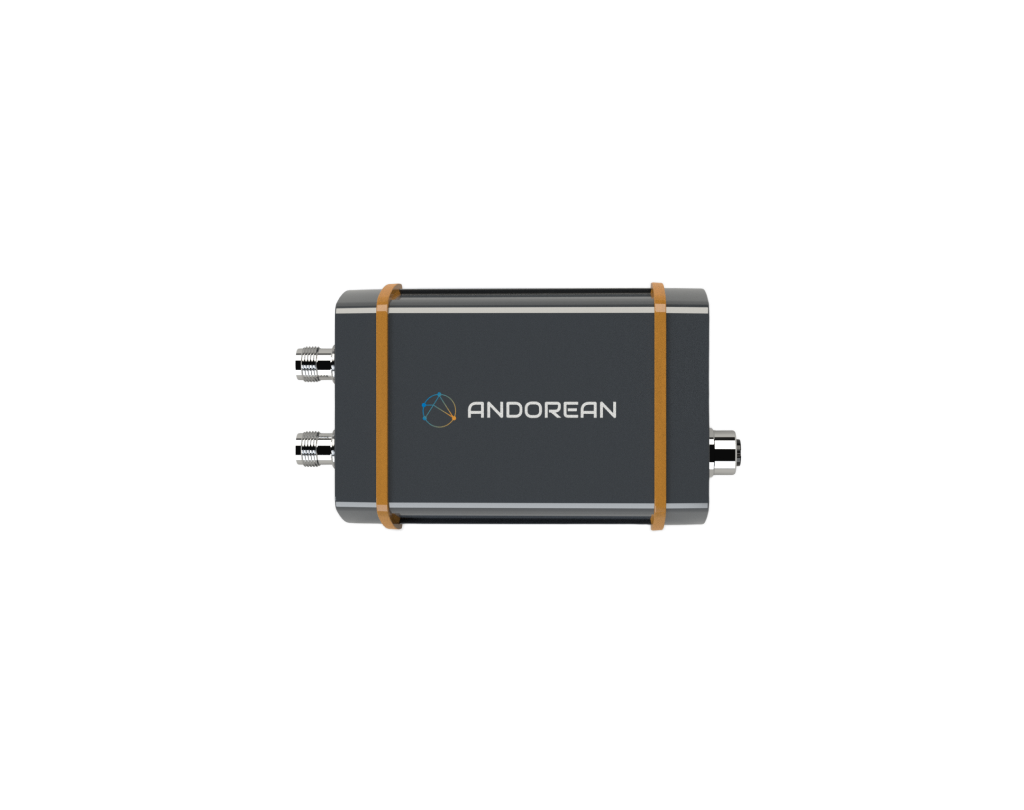

Andorean Tag

Industrial IoT on vehicles and assets — location plus CAN/Modbus.

03

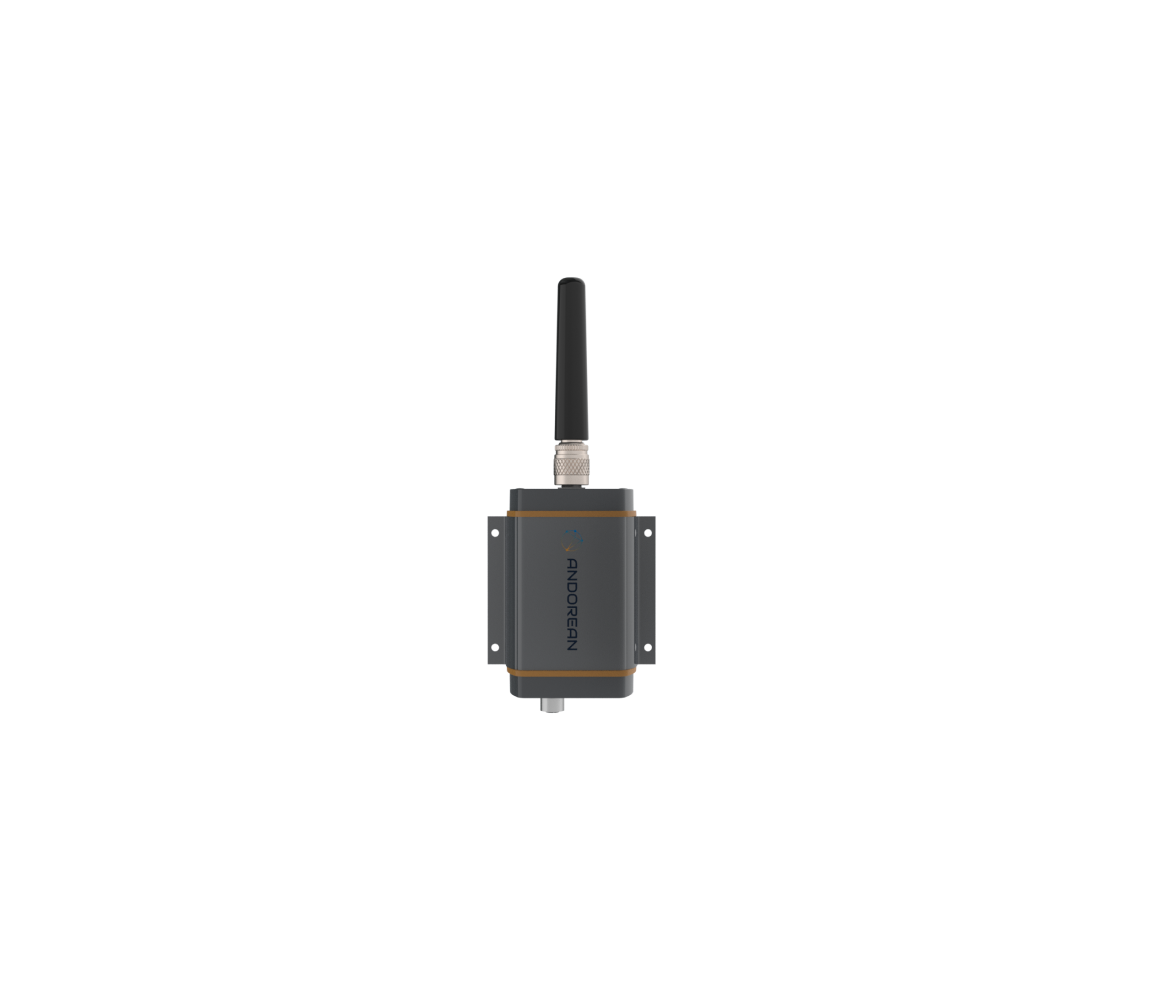

Andorean Node

Sensor gateway for 4–20 mA and Modbus field instruments.

04

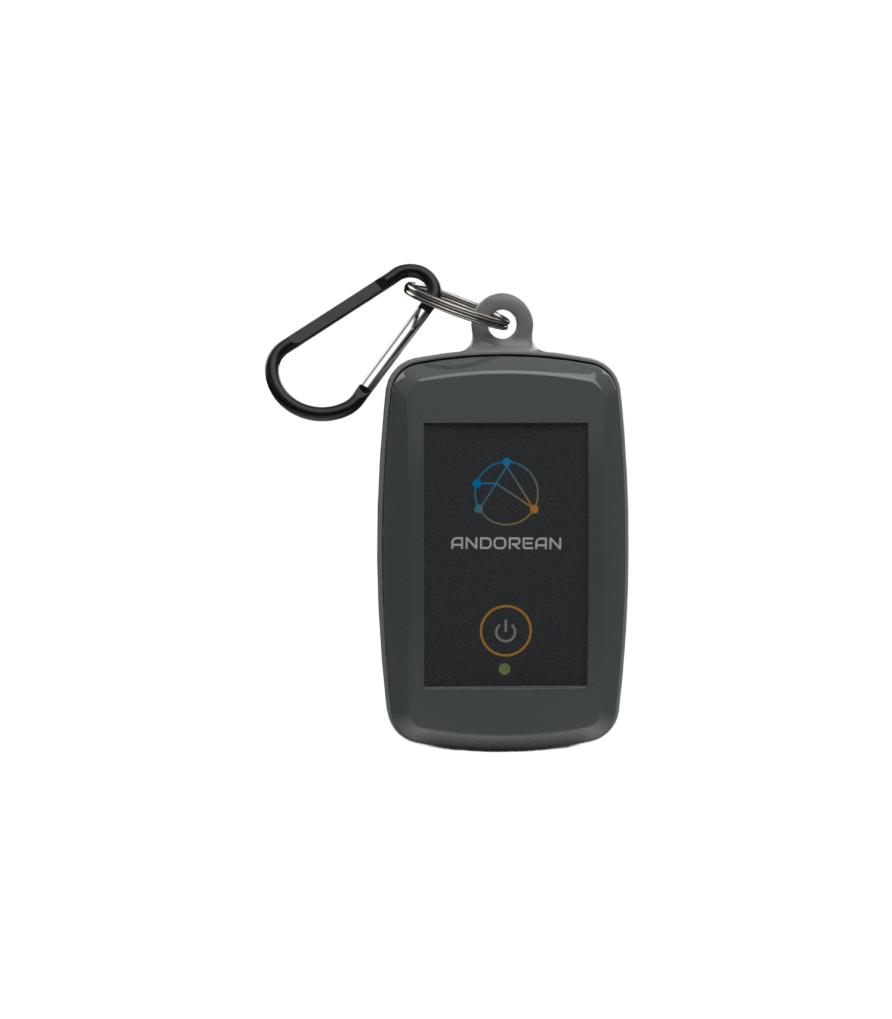

Andorean U-Tag

Wearable UWB personnel tag with geofencing, live tracking, and fall detection.
